Autopuller Parts
Use this page to identify and order parts
Double Click Image for large picture
Hit backspace to return to thumbnail
Recommended plant stock in bold blue print

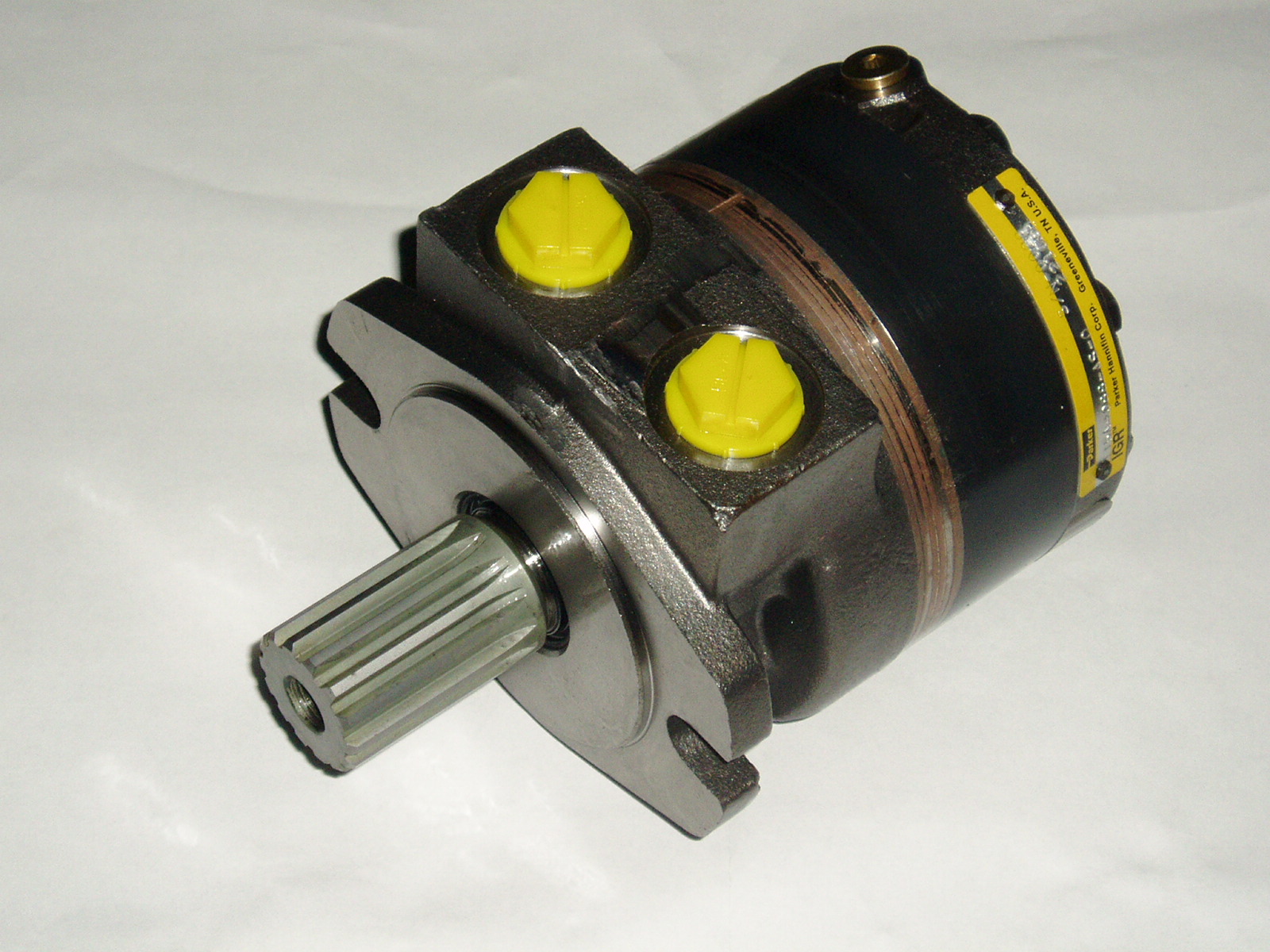

Hydraulic Motor
PN#  SB-HM    TPN# SL504110

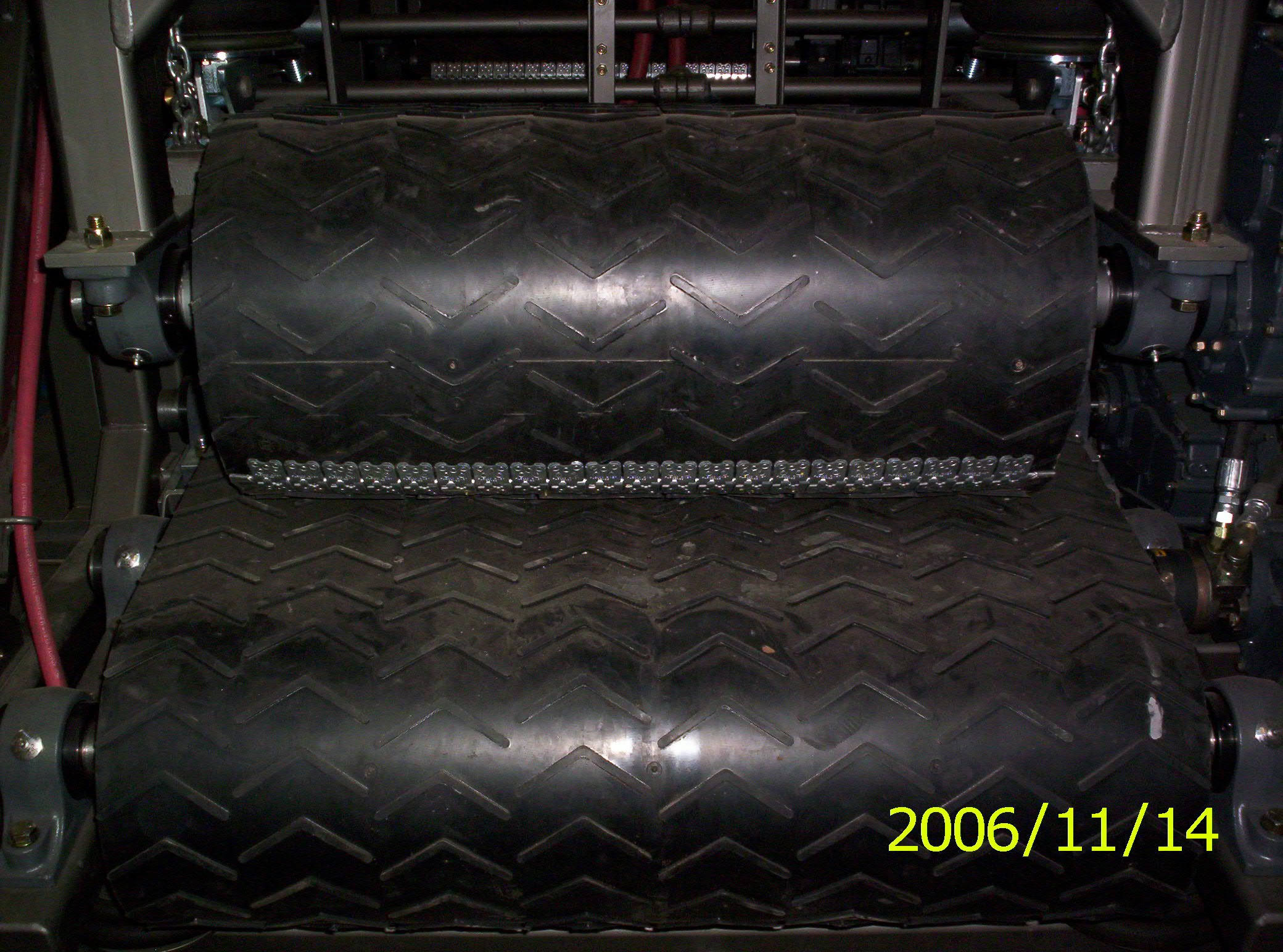

Top and Bottom Belt
PN# SB-TB  TPN#BE512102 / BE512017
PN# SB-BB  TPN#SL504109 / BE512027
Gearbox
PN# SB-GB

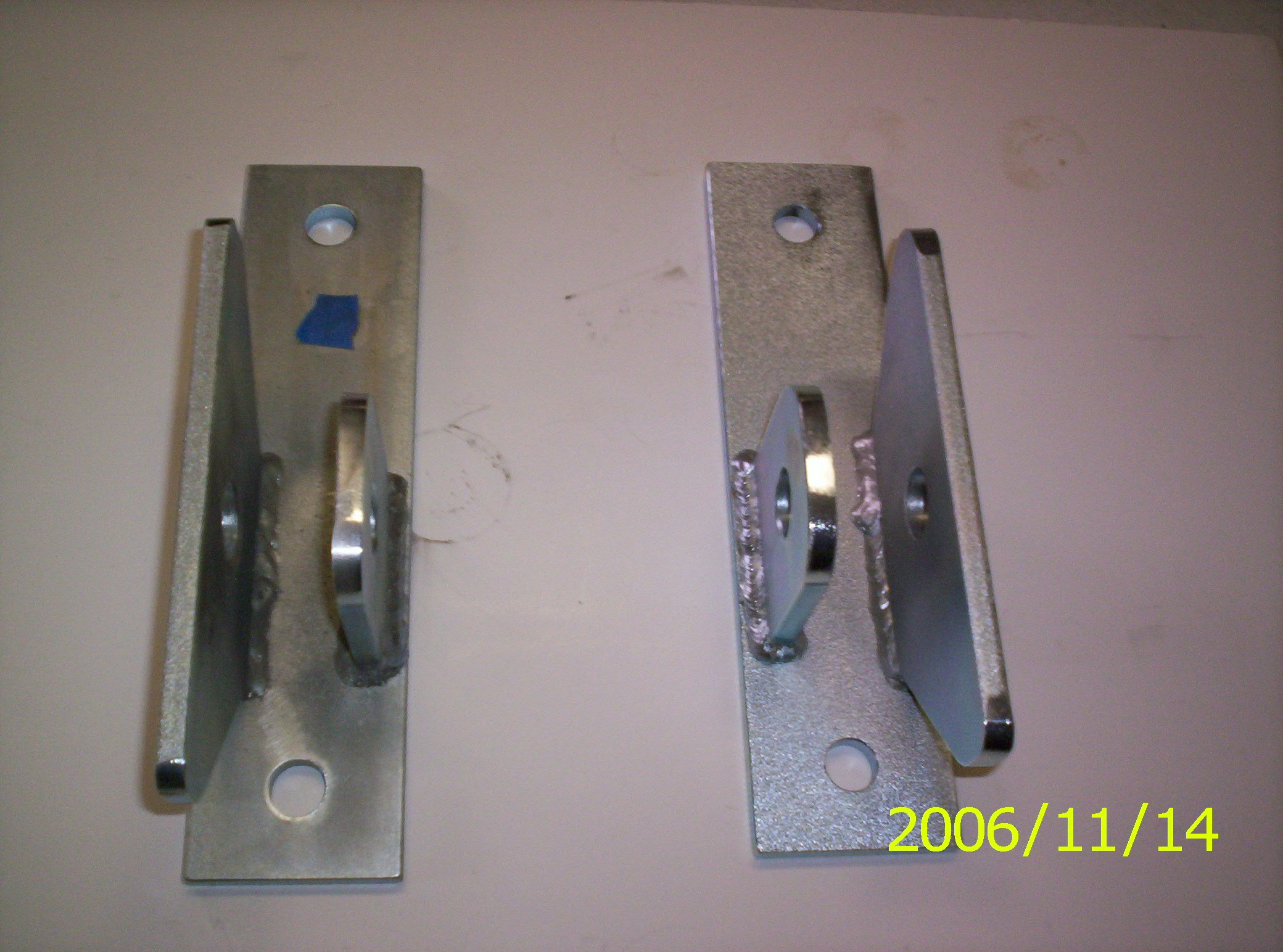

Airbag Mounts
PN# SB-ABM

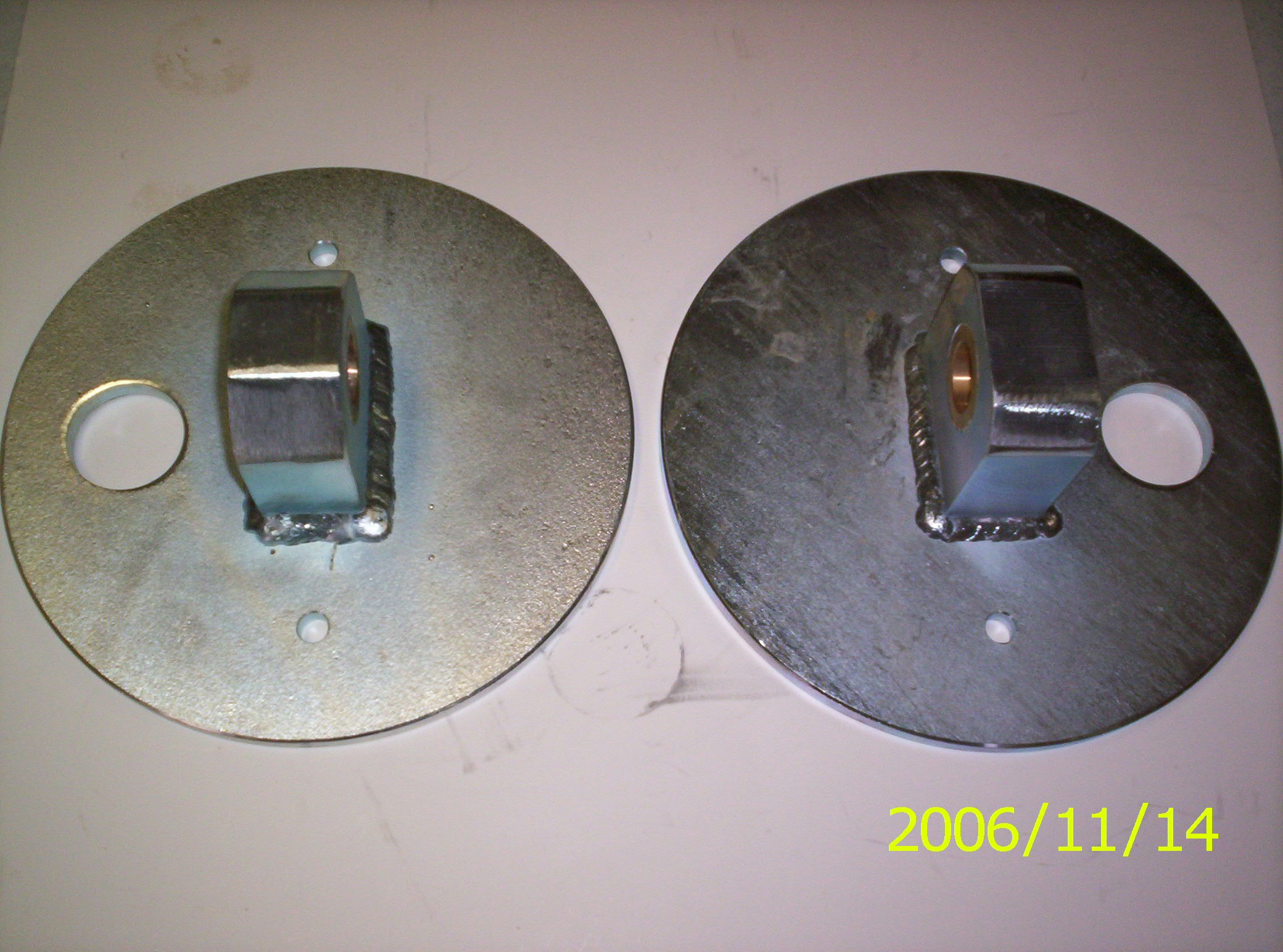

Airbag Mounting Plates
PN# SB-ABMP

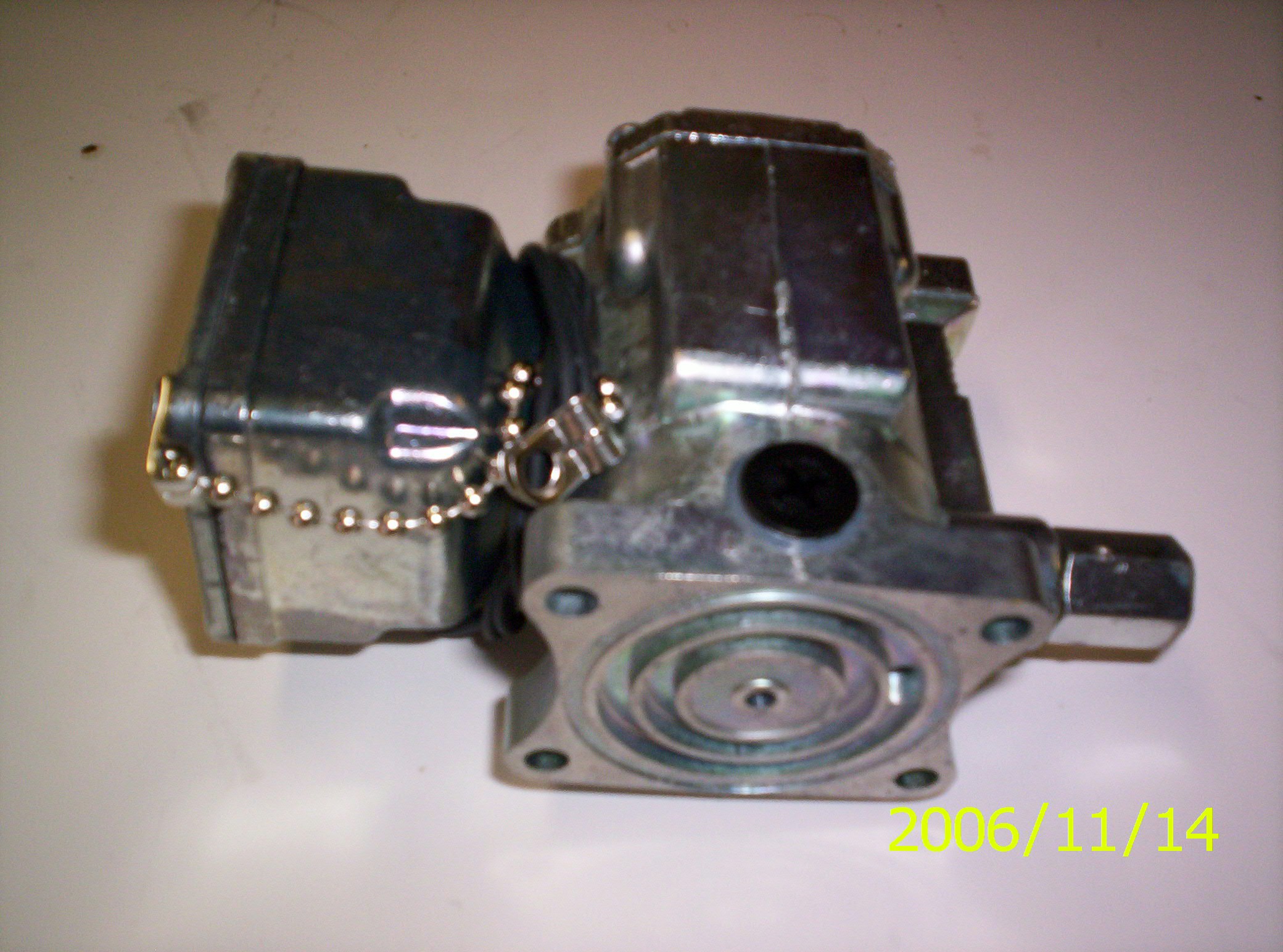

Airbag Valve Solenoid
PN# SB-AIRSOL

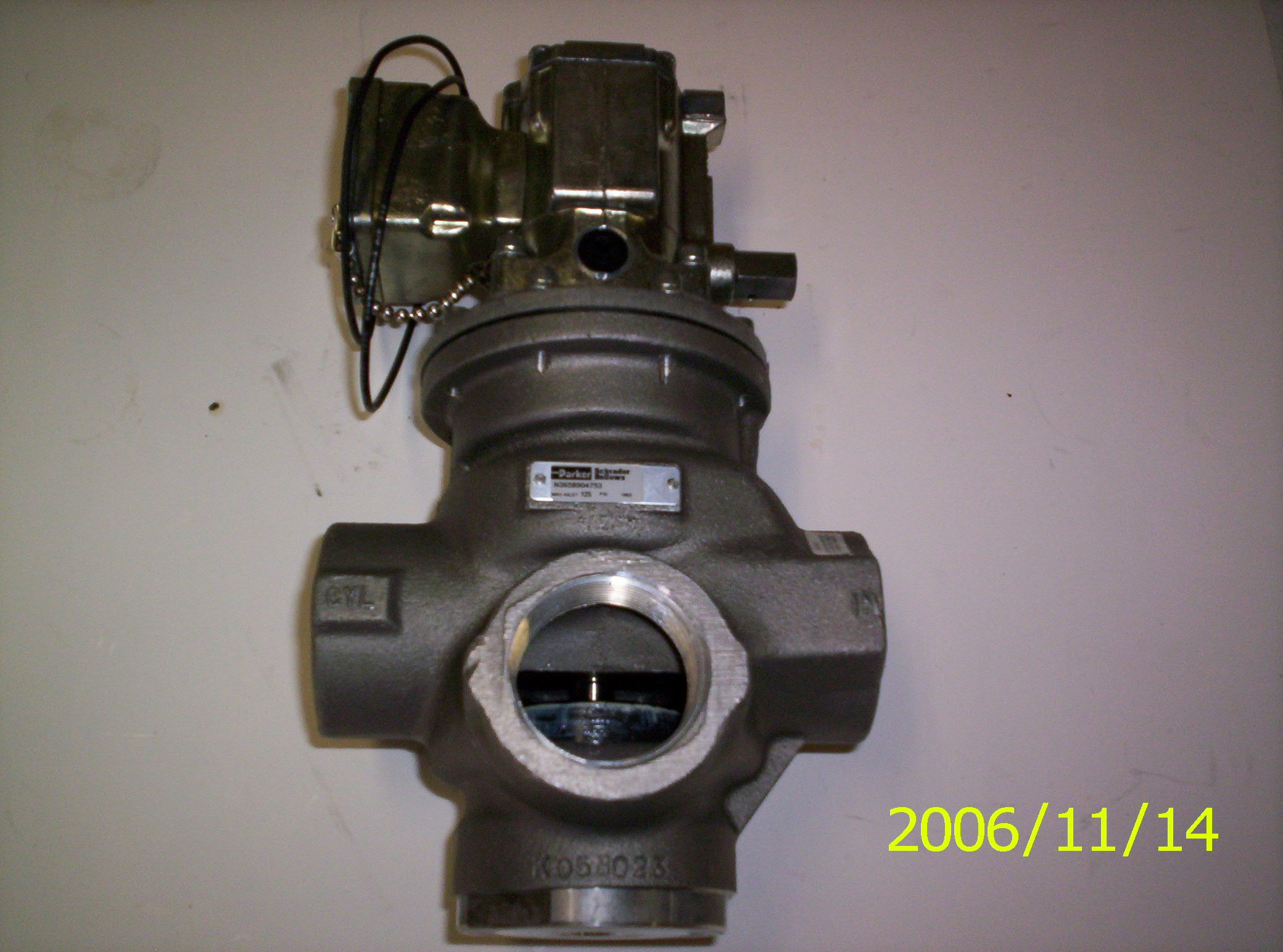

Airbag Valve
PN# SB-ABV  TPN# SL504113

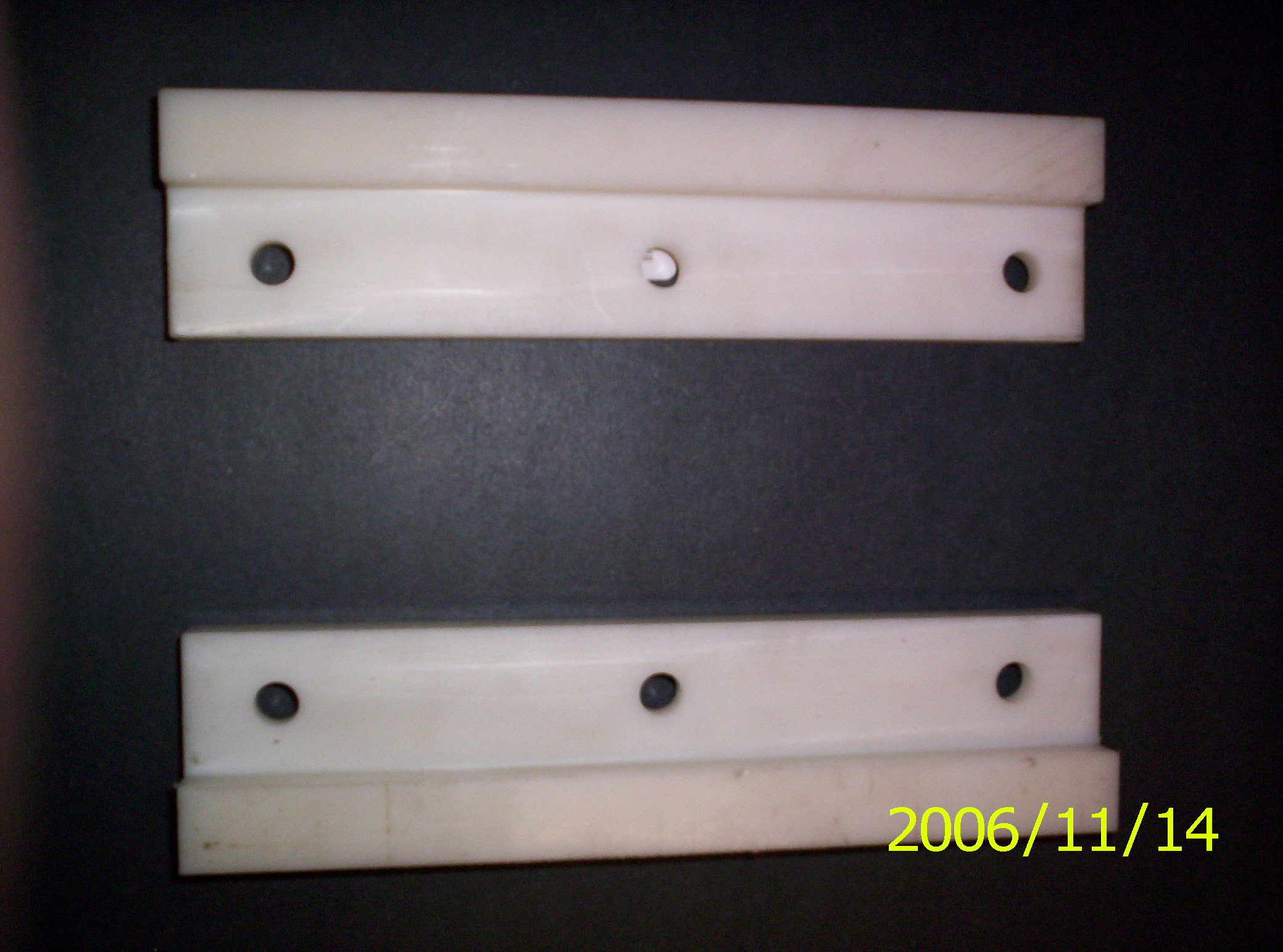

Airbag Wear Strips
PN#  SB-UHMWCG TPN# SL504104
4 req per machine

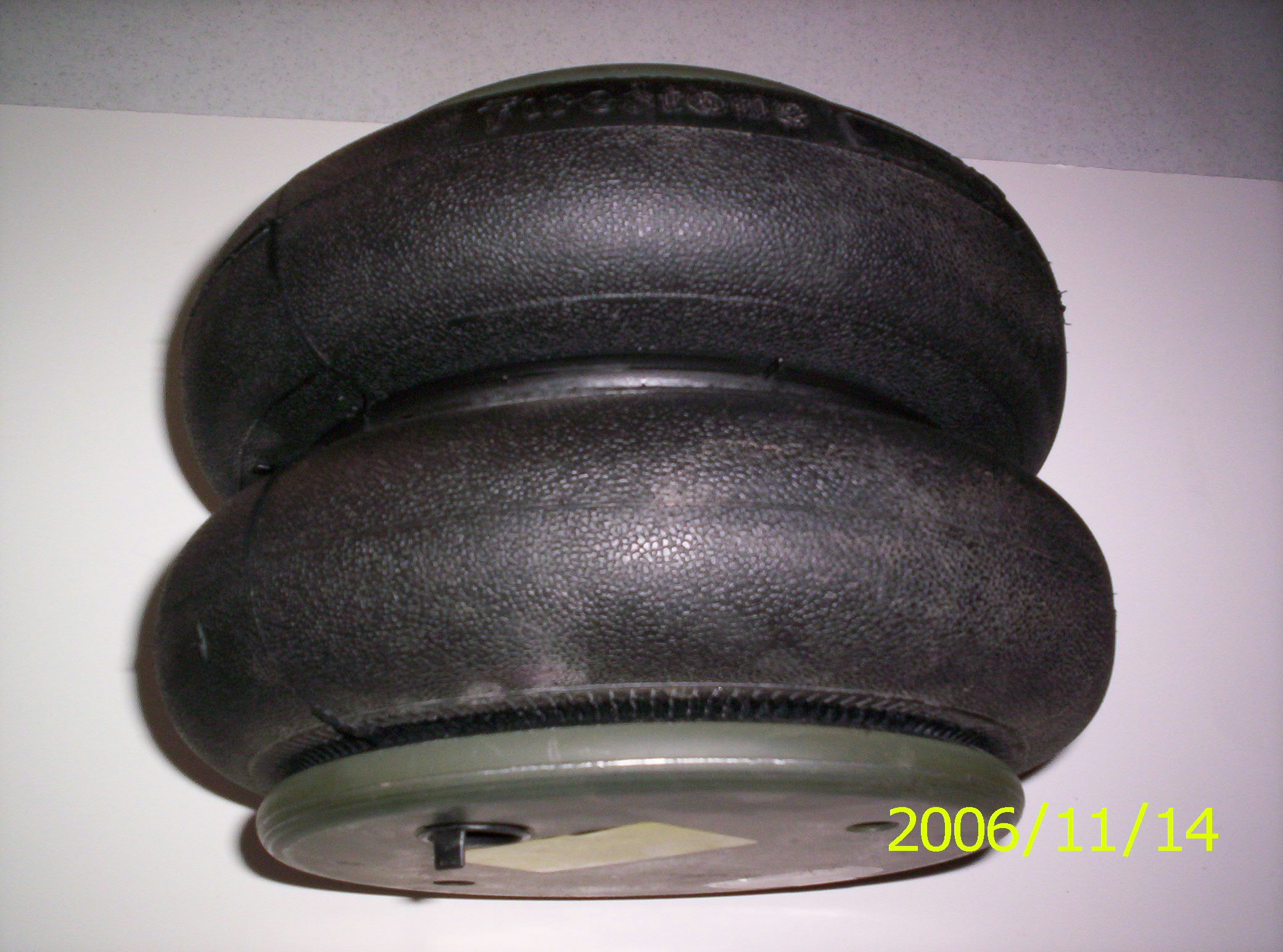

Airbag
PN# SB-AB  TPN# SL504115
4 per machine
Cylinder Hydraulic Valve
PN# SB-CV  TPN# SL504112
Cylinder Mount Rebuild Kit
PN# SB-CMRKIT
Consists of:  2 ea hydraulic cylinder & clevis
assy, 2 ea bottom cylinder mounts w/ bushings, 2
ea upper cylinder bushings

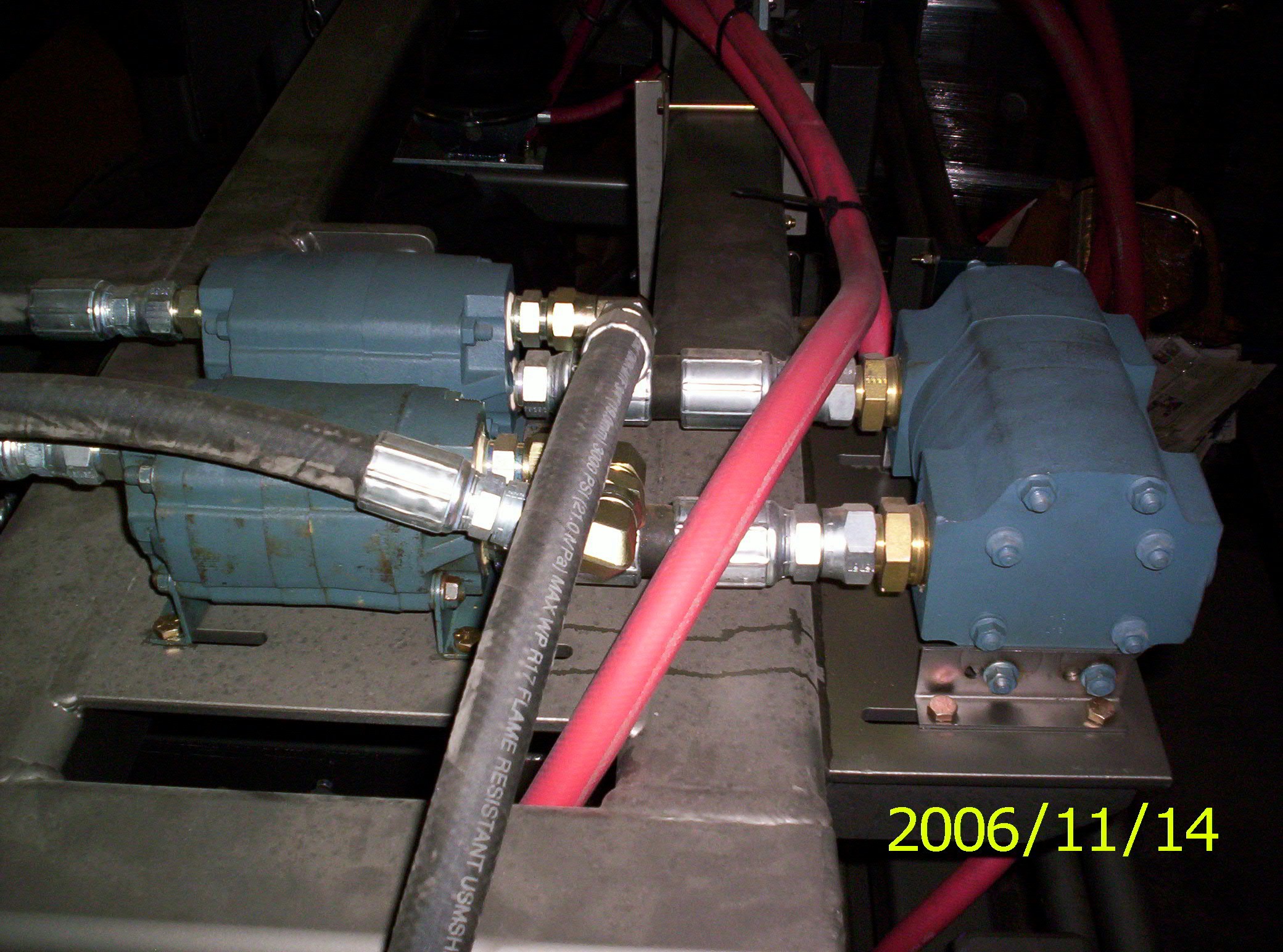

Flow Dividers (Large & Small)
PN# SB-LFD  TPN# SL504129 (Large)
PN# SB-SFD  TPN# SL504122 (Small)
Inner Frame Pivot Rebuild Kit
PN# SB-FPRKIT
Consists of: 2 ea 2-3/16 Pillow blocks, 2 ea pivot
pins, and 2 pivot spacers
Gearbox Retaining Plate
PN# SB-GRP
Hydraulic Pump
PN# SB-HYDPUMP
Frame Bumpers
PN# SB-BMPR
Maintenance Pins (Specify type machine)
PN#  SB-MP

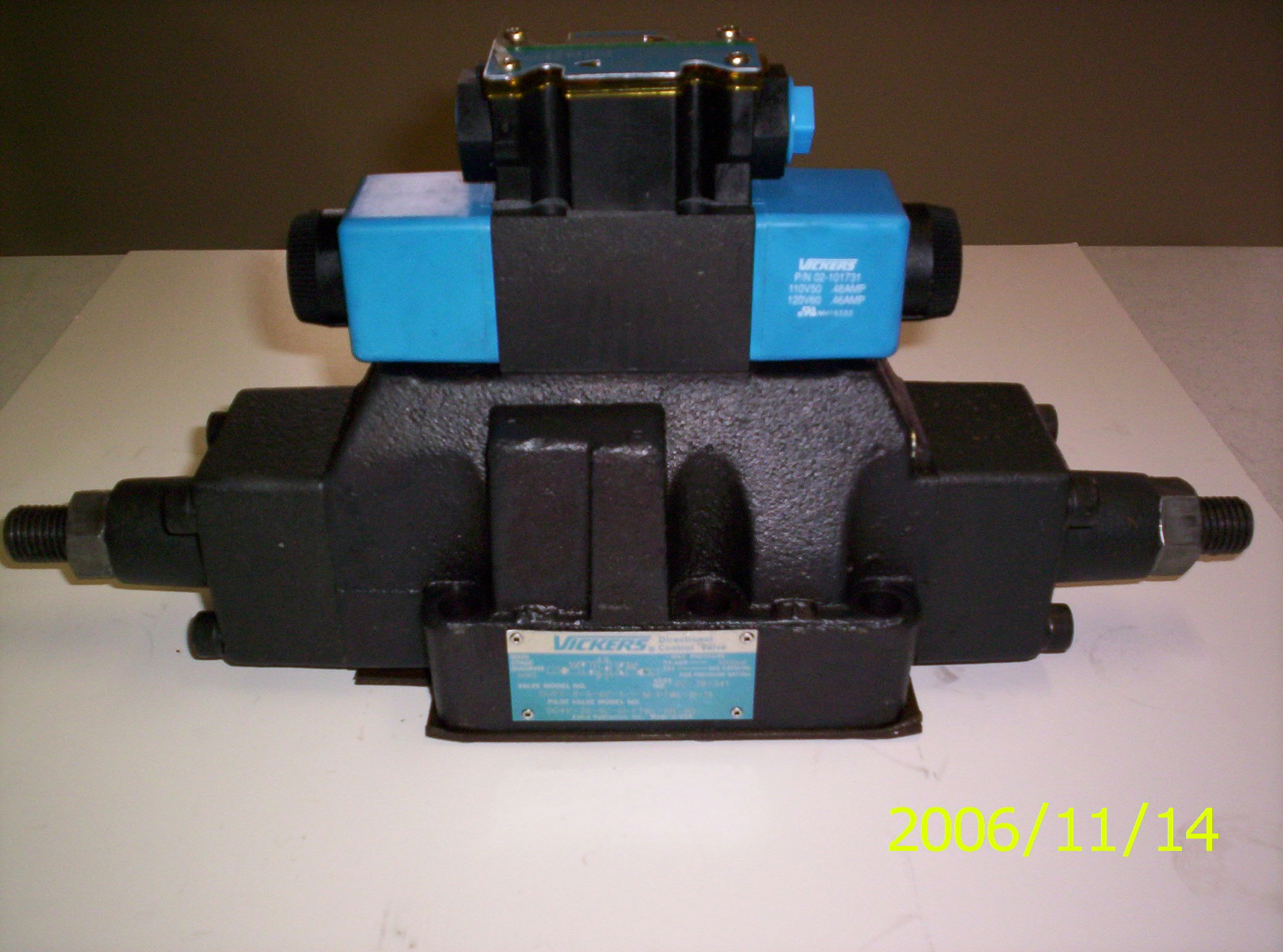

Hydraulic Motor Valve
PN#  SB-MV  TPN#SL504111

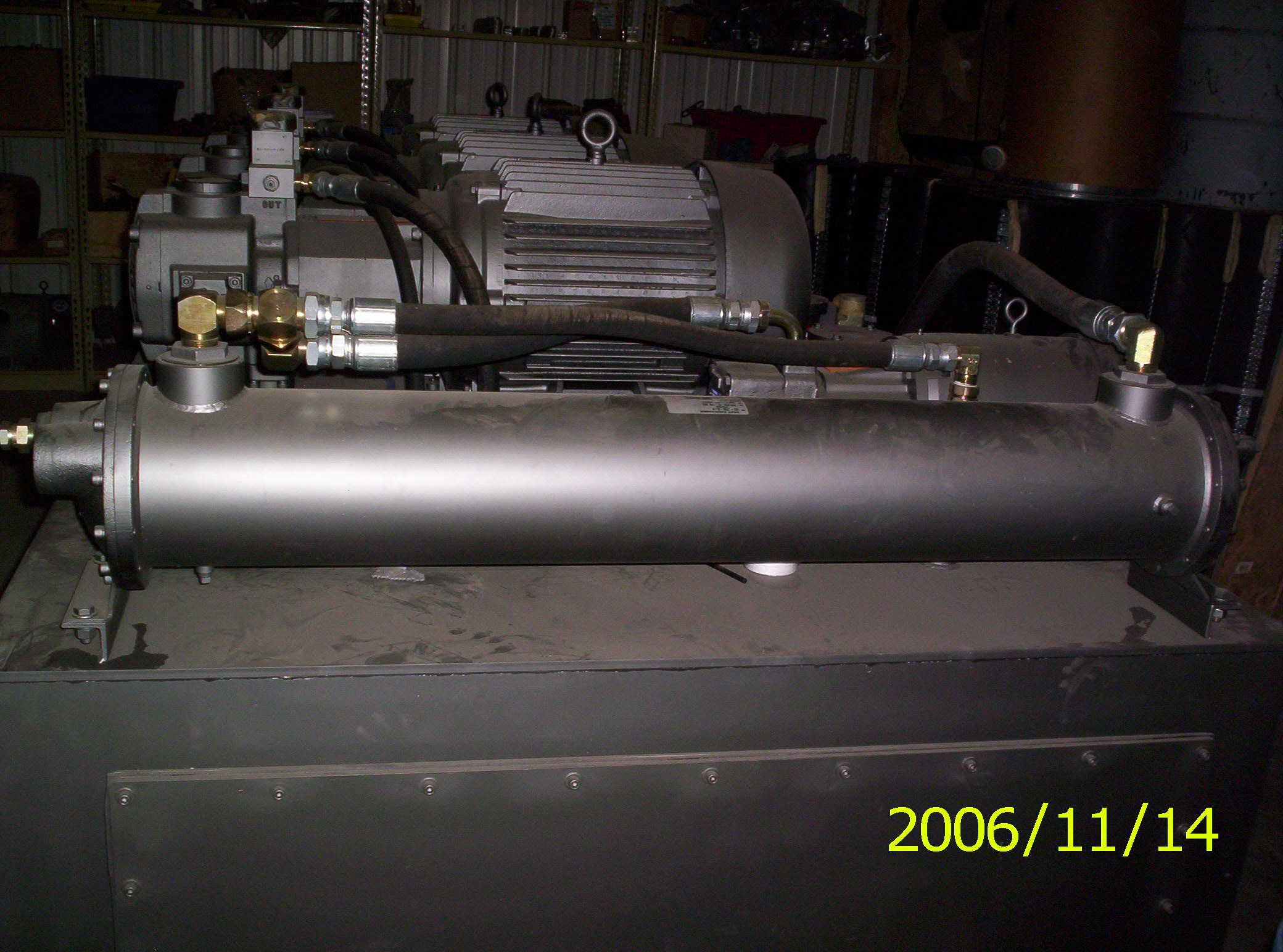

Water Cooler
PN#  SB-WC
Lower Front Bearing Positioning Arm
PN#  SB-RS

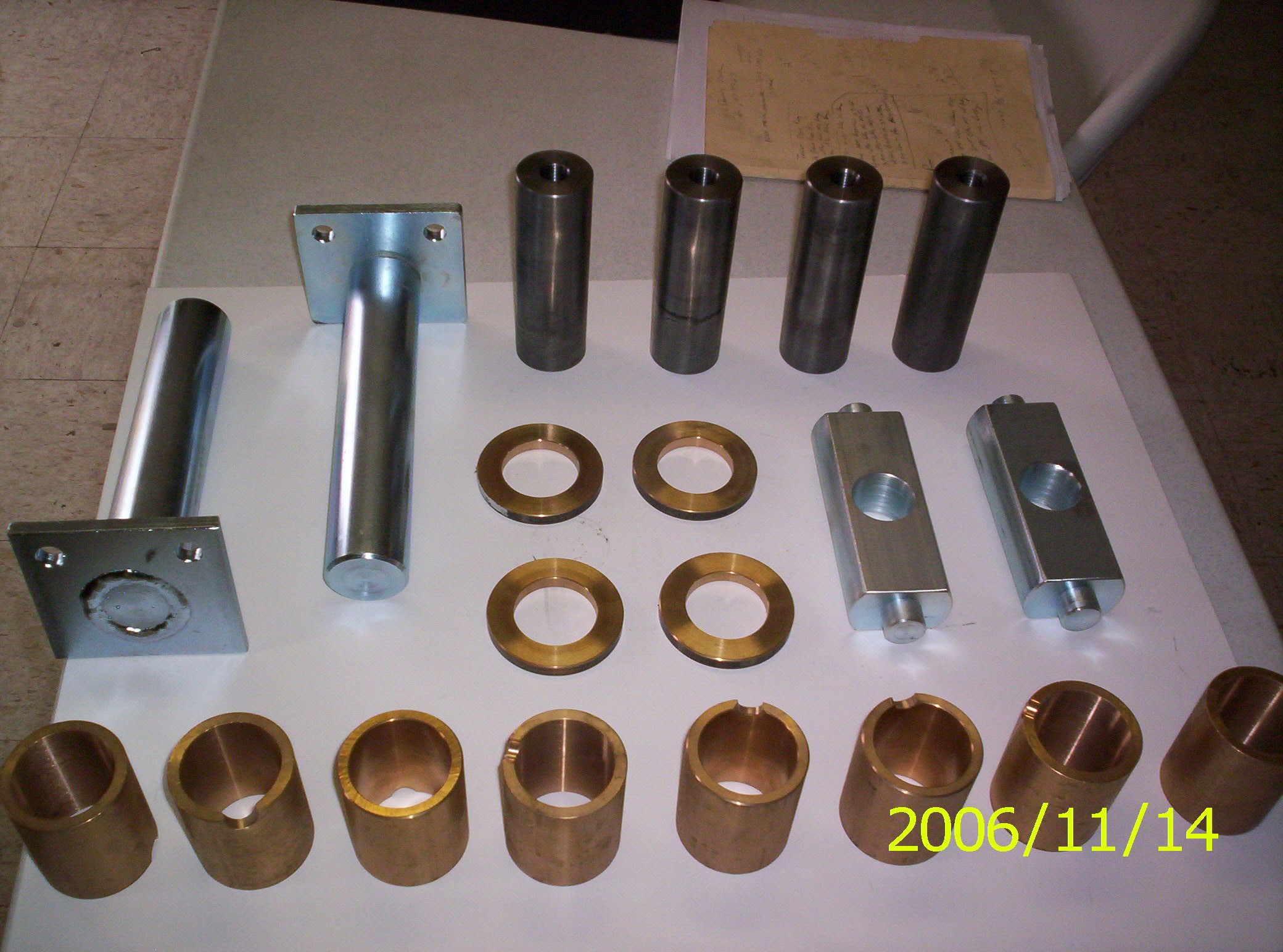

Upper & Lower Roller Arm Rebuild Kit
PN#  SB-ULRARK  Consists of: 12 ea arm
bushings, 4 ea thrust washers, 2 ea lower arm pins,
4 ea upper arm pins, 2 ea upper adj pivot pins

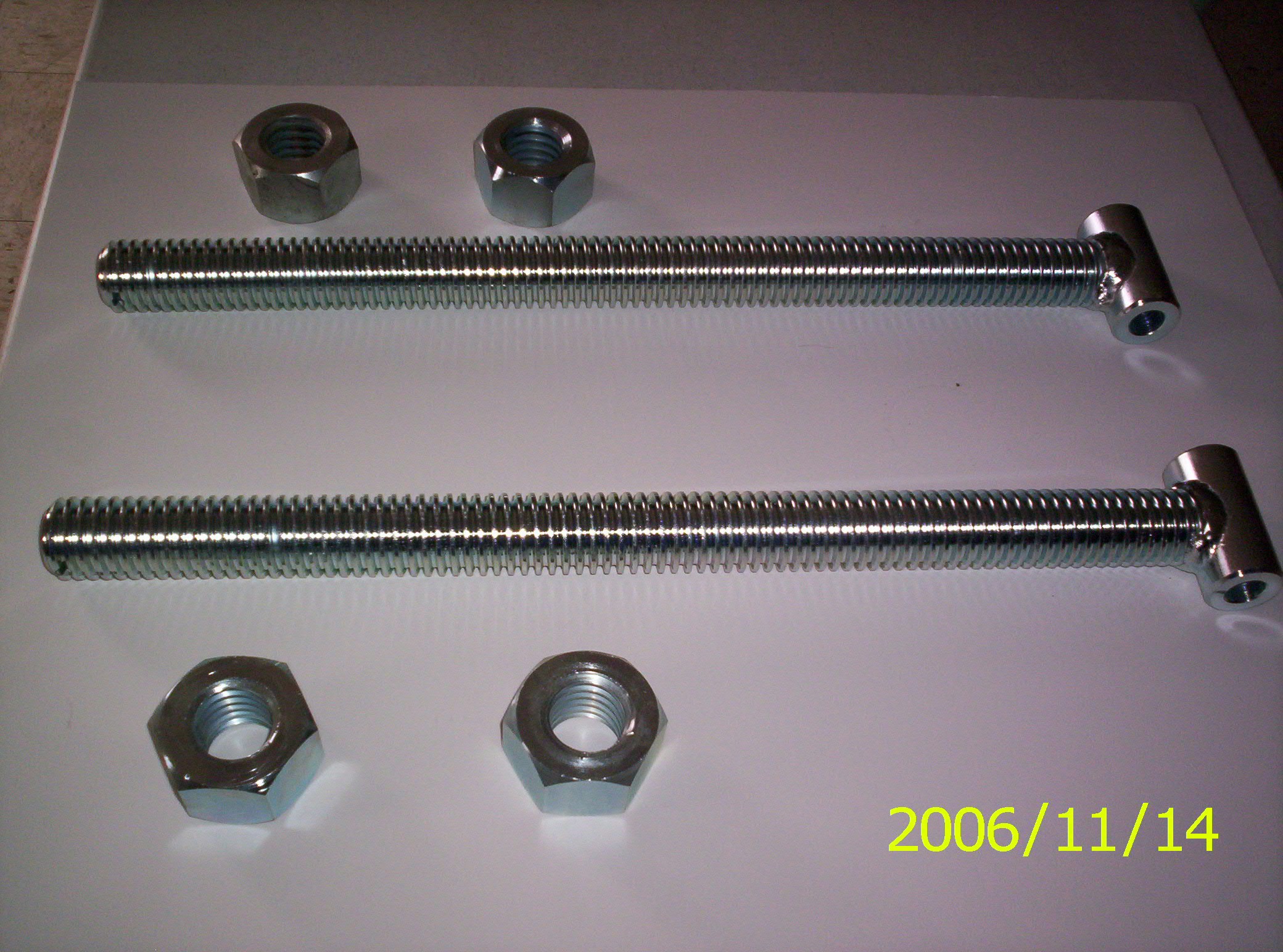

Upper Roller Adjusting Rods
PN#  SB-URAR
Cylinder Shields
PN# SB-CYLSHD
Sold in sets only
For PLC Support Contact:
ASKSteve Inc.
Steve Heintzelman
Phone/Fax  970-392-9226
Cell             970-396-9751
ASKSTEV@aol.com
Recommended Spare Parts List

1 ea top roller
1 ea bottom roller
1 ea Upper Rear Shaft
1 ea Upper Front Shaft
1 ea Lower Center Shaft
1 ea Lower Drive shaft
4 ea Roller bearings
1 ea Pivot Rebuild Kit
2 ea Top Belts
2 ea Bottom Belts
2 ea Hydraulic Lift Cylinder & Clevis
2 ea Gear Box
4 ea Hydraulic Motor
2 ea Air Bag
1 ea Motor Control Valve
1 ea Cylinder Control Valve
1 ea Hose & adapter kit
1 ea Large Flow Divider
1 ea Small Flow Divider
1 ea Machine Bushing Kit
For PLC support see
literature page
  • Other Parts Available but not shown
  • Airbag guide lifting rods
  • Pillow block bearings for rollers
  • Rollers upper & lower
  • Complete roller assemblies  Includes roller, shaft,
    gearbox, hydraulic motor, pillow block bearings  (specify which
    roller)
  • Belt Pins  (Specify upper or lower)
  • Power unit parts listed in Power Unit Manual
    available on literature page
  • Bushings
  • Hose & adapter kits
  • Shafts (Specify Upper rear, Upper front, Lower drive, Lower
    idler)
  • Clevis & Pins for Hydraulic Cylinder
  • Spray Nozzles
  • Hydraulic Pipes on Machine
  • Bolt kits (entire machine)
  • Rear lower bearing wear strip
  • Retro fit kits available
  • Call if you don't see an item here
Hydraulic Cylinder & Clevis Assembly
PN# SB-HC  TPN# SL504114
Hydraulic Cylinder Pipe Assembly
PN# SB-HCPA
2 required per machine

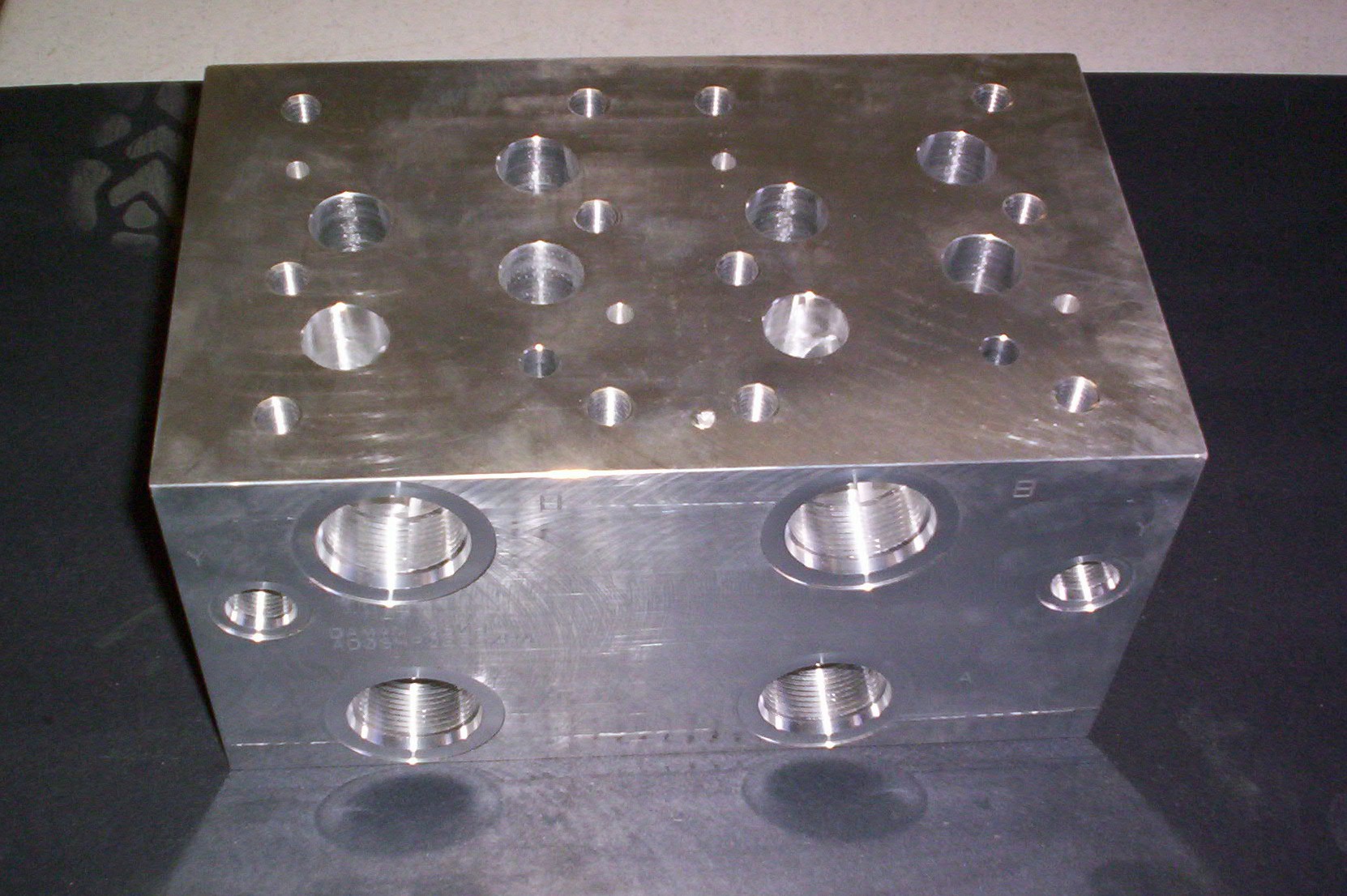

Hydraulic Valve Manifold
PN# SB-MAN  TPN#SL504119

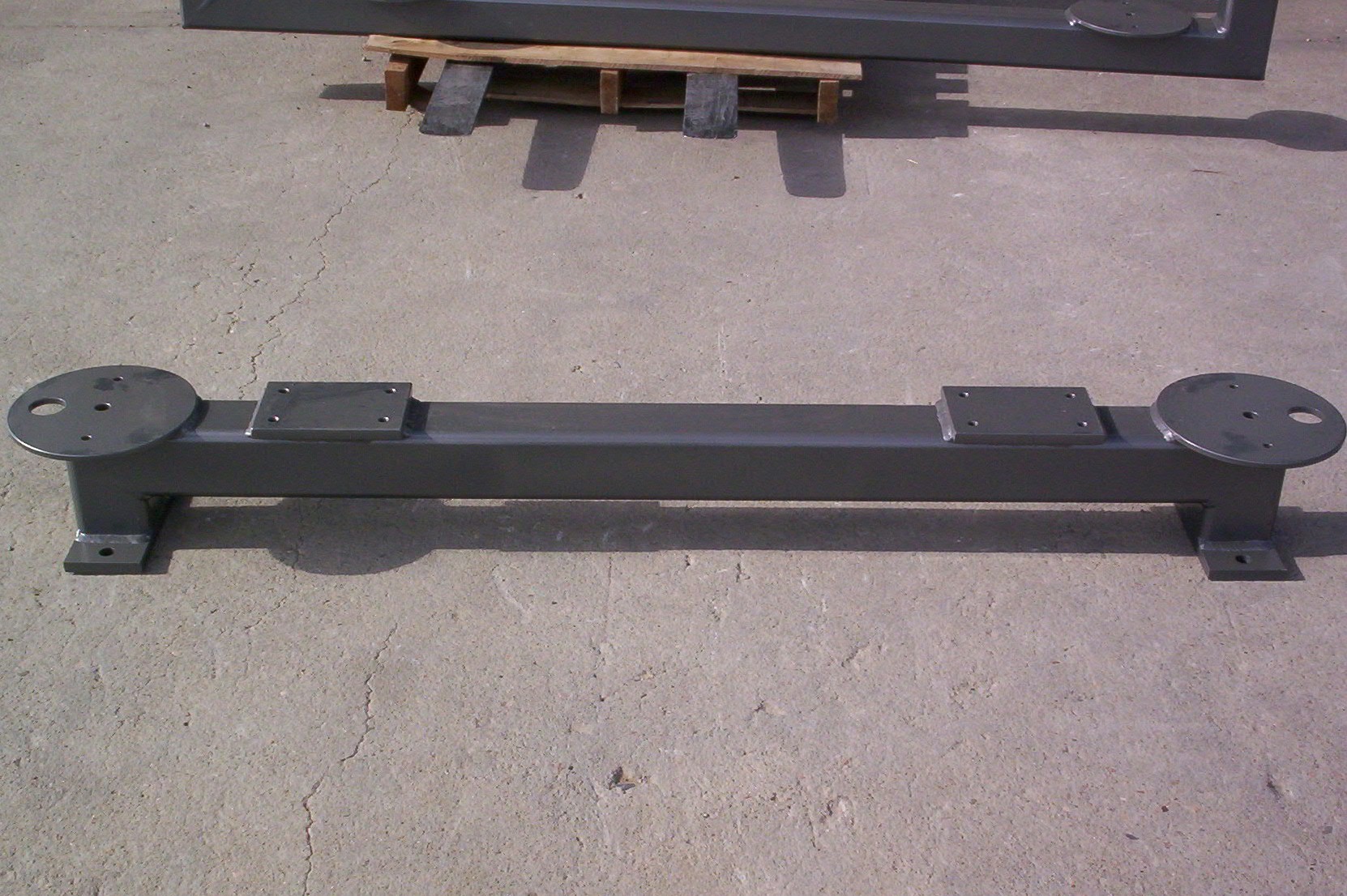

Lower Airbag Bolt on Bar
PN# SB-ABOB
Installed on bottom airbag style machines
Lower Airbag Weld on Bar
PN# SB-AWOB
Installed on bottom airbag style machines

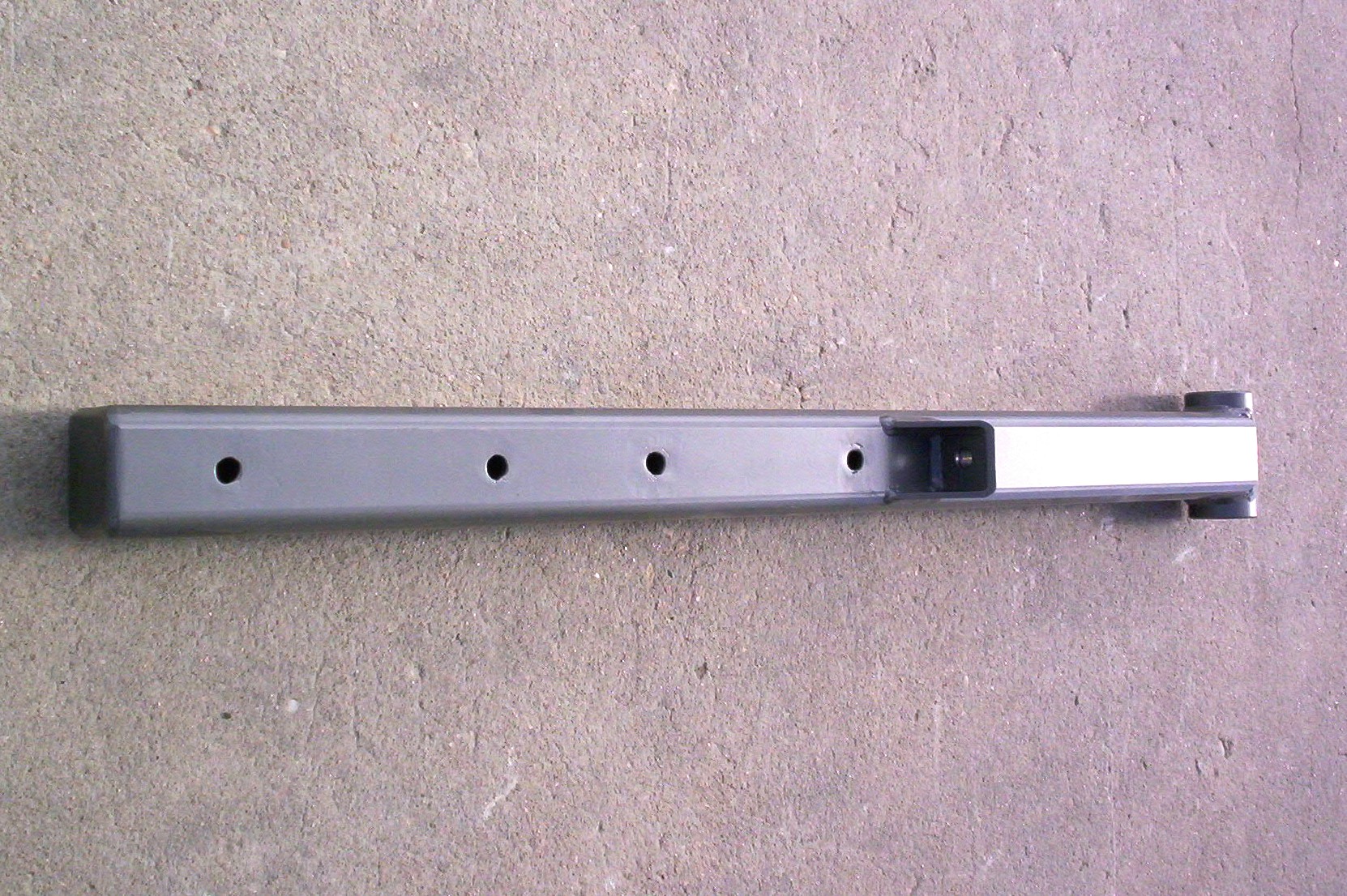

Lower roller mount (without torque arms)
PN# SB-LRMWOTQARMS
(Specify type machine)
Lower roller mount (with torque arms)
PN# SB-LRMWTQARMS
(Specify type machine)

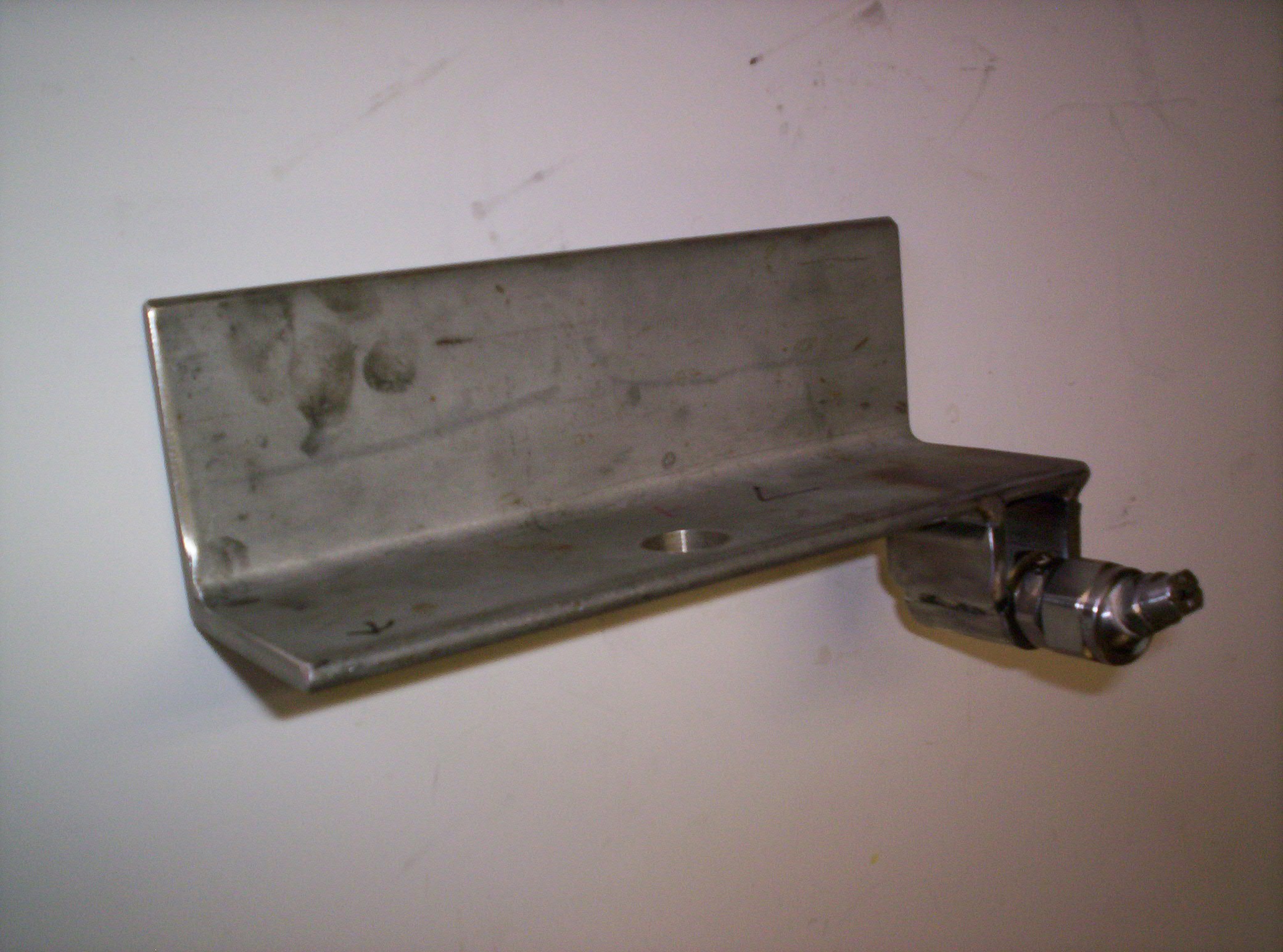

Lower belt inner spray bar assembly
PN# SB-LBISBA
(Specify type machine)

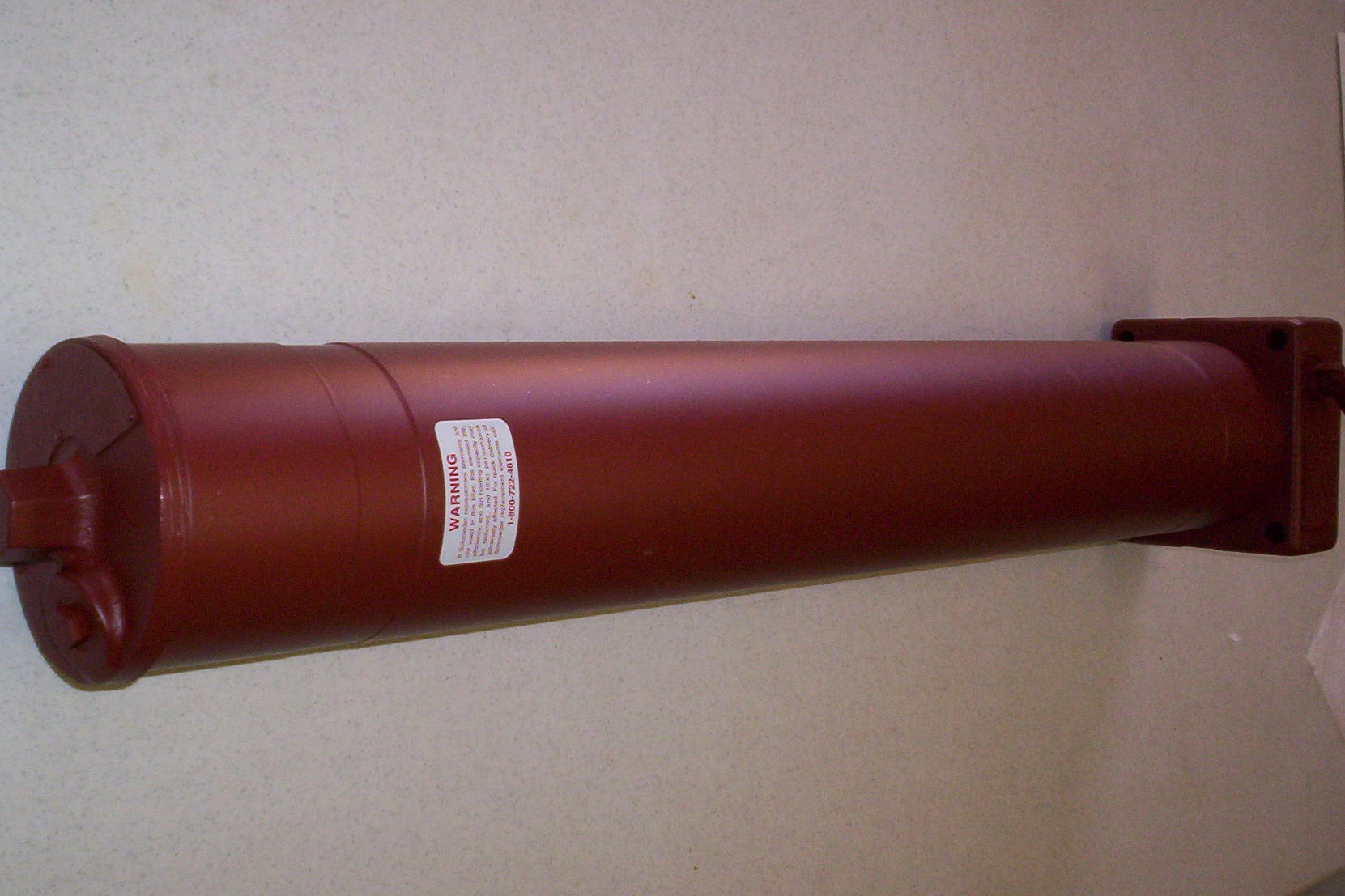

Pressure Filter   New item!
PN# SB-PF
Return Header
PN# SB-RH
(Specify type machine)
SB Packing House Equipment
17168 N Frontage Rd
Ft Morgan, Co  80701
970-867-6664 office
It is extremely
important to use
the correct belt on
your machine.
Incorrect belting
causes machine
malfunction and
possible cracking
on frames.
Please contact us
with any
questions.
FOR EMERGENCY PARTS OR SERVICE
PLEASE CALL DOUG SIDERS AT 402-659-2451
The SB Automatic Hide Puller removes
approximately 70,000 hides per day!
